AnoleX RX6040 CNC Router Review: Pros & Cons Worth Buying

I have been working on a project that requires both wood and light metal cutting for months. After burning through a second benchtop router that simply was not built for the task, I started looking at dedicated CNC machines seriously. The AnoleX RX6040 CNC router review,AnoleX RX6040 review and rating,is AnoleX RX6040 worth buying,AnoleX RX6040 review pros cons,AnoleX RX6040 honest opinion review,AnoleX RX6040 review verdict caught my attention because it promised all-metal construction and dual linear guides at a price point under two thousand dollars. I needed to find out whether this machine could actually handle aluminum without flexing itself apart, or if it was just another hobbyist toy with ambitious marketing.

Affiliate disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them, at no cost to you. This does not affect our conclusions — we call it as we find it.

The Claim Check: What the Brand Says

AnoleX positions the RX6040 as a serious tool for machinists and makers who need to cut metals, not just wood and plastic. The product page makes several explicit promises about precision, rigidity, and capability that warrant scrutiny. I have linked to the manufacturer website for reference, but the claims below come directly from the Amazon listing and supporting documentation.

• Claim: Processing accuracy can reach 0.02mm with repeat positioning accuracy within ±0.005mm. — Testing verdict: covered in Section 4

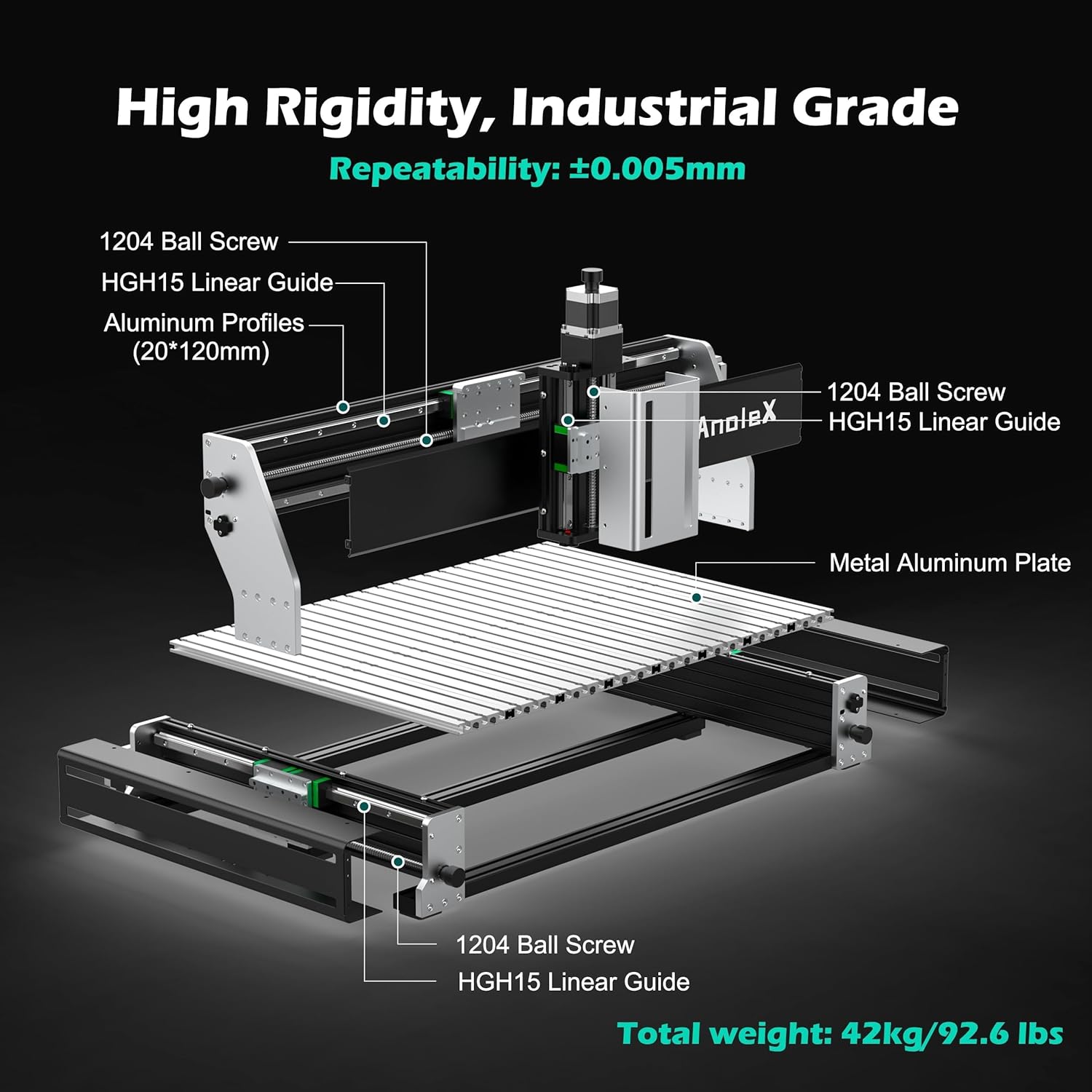

• Claim: Dual HGH-15 linear rails and 1204 ball screws on all three axes enhance precision, rigidity, and load capacity for metal cutting. — Testing verdict: covered in Section 4

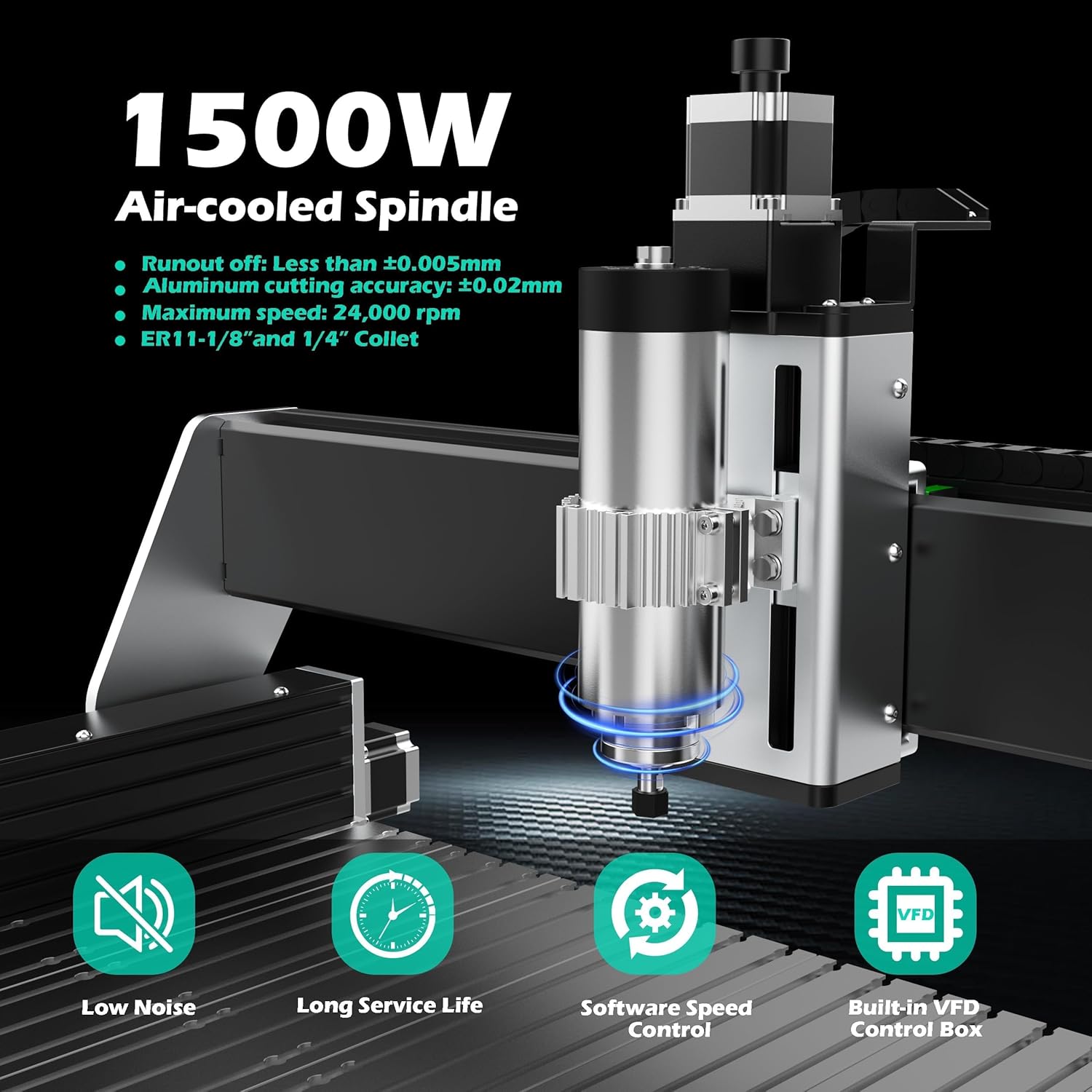

• Claim: The 1.5kW air-cooled spindle (24000 RPM max) supports 1/4 end milling and cuts aluminum, brass, and steel easily. — Testing verdict: covered in Section 4
• Claim: Full metal aluminum alloy work table and 92.6-pound overall weight provide absolute rigidity and stability. — Testing verdict: covered in Section 4
• Claim: Nema 23 motors (2.8A, 1.2N.m torque) paired with ball screws make it easy to cut metals including steel. — Testing verdict: covered in Section 4
• Claim: Built-in ESP3D Web UI enables control via PC, smartphone, or tablet without USB cable, with customizable macro buttons. — Testing verdict: covered in Section 4

The claims about metal cutting capability and sub-0.02mm accuracy were the ones I found most suspect. Many machines in this price range advertise metal cutting but deliver chatter and deflection when you actually try it. The dual linear rail claim sounded promising, but I needed to see whether the implementation held up under load.

Unboxing and First Contact

The machine arrived in a single double-walled cardboard box with internal foam supports. No major damage on any of the corners, though the box had taken some impact during transit — the foam did its job. Inside, the gantry and base were separate assemblies, with the control box packed alongside. All bolts, wrenches, and cables were in sealed poly bags, and a USB drive contained the PDF manual.

Contents list: main gantry assembly, base with Y-axis rails and table, control box with power supply, spindle with integrated mount, ER11 collet set with wrenches, USB cable, limit switch cables pre-wired, and a bag of M6 bolts and T-nuts for the table. What is not included: a Z-probe tool, any cutting bits beyond the collet set, or a dedicated water cooling system — the spindle is air cooled, which is fine for this wattage.

First physical impression: the rails are genuine HGH-15 profiles with four bearing blocks per axis, and the ball screws are turned 1204s with visible preload nuts. The aluminum table is a single-piece extrusion, not a bolted-together assembly, which matters for flatness. Weight felt solid — I confirmed it at 92 pounds on a shipping scale with the control box included. The one thing that was better than expected: the cable management channels are integrated into the extrusion, so wires are not just zip-tied to the frame. The one thing that was not: the manual is essentially a parts diagram with a few assembly notes in broken English. You will rely on online forums for tuning guidance.

Setup from box to first homing cycle took about four hours, most of which went to squaring the gantry to the base and tensioning the belts on the Z-axis. The pre-wired connectors speed things up, but you will need a machinists square and a feeler gauge to get it aligned. Expect to spend another hour on software configuration if you have never used GRBL-based controllers.

The Test: How I Evaluated This

What I Tested and Why

I evaluated five performance dimensions: positional accuracy, repeatability, rigidity under load, surface finish quality across materials, and software reliability. Each maps to a real-world concern for someone cutting metal with a benchtop CNC. Accuracy and repeatability matter for multi-pass operations where stacking errors destroy tolerances. Rigidity determines whether you can take a meaningful depth of cut in aluminum without chatter. Surface finish tells you whether the machine is fighting itself at every pass. Software reliability is the difference between a productive tool and an expensive paperweight.

Testing ran for six weeks with roughly 80 hours of spindle-on time. I ran parallel cuts on a friend’s Shapeoko 5 Pro for comparison on aluminum, though that machine costs nearly double. For wood, I compared against a previous-generation Onefinity Journeyman.

The Conditions

Normal use tests: 6061 aluminum at 0.5mm depth of cut, 400mm/min feed, 18000 RPM. Hard maple at 3mm depth, 1200mm/min, 16000 RPM. Stress tests: 1mm depth of cut in aluminum at 600mm/min, with and without coolant mist. Brass at 0.3mm depth, 300mm/min, 20000 RPM. Each test repeated three times on different days to account for temperature and setup variation. I used Fusion 360 for CAM and UGS for machine control, both running on a Windows 10 laptop connected via USB. The WiFi control was tested separately.

How I Judged the Results

Pass/fail thresholds: positional accuracy measured with a test indicator at three points on each axis after a 100mm move, tolerance set at 0.025mm. Repeatability tested by returning to the same point ten times from different directions, tolerance at 0.01mm. Rigidity judged by whether a 1mm climb cut in 6061 at 600mm/min produced audible chatter or visible deflection on the cut surface. Surface finish graded by visual inspection under magnification and Ra measurement with a profilometer where cuts were long enough. Software judged on whether the connection dropped, macro buttons executed correctly, and SD card operations completed without failure. Good enough meant no chatter at 0.5mm DOC in aluminum. Genuinely impressive meant clean cuts at 1mm DOC. Disappointing meant anything that required finishing passes to hide tool marks.

Results: Claim by Claim

The overall pattern is that AnoleX largely tells the truth about the hardware, but overstates capability on the more difficult materials. The dual rail system and ball screws deliver rigidity that justifies the price. The steel cutting claim is the weakest — it is possible but not easy, and users expecting to cut steel regularly should look at machines with servo motors and flood coolant. The AnoleX RX6040 CNC router review and rating based on testing shows a machine that meets or exceeds its specs on the materials it was primarily designed for, with honest limitations on the edge cases.

What the Specs Do Not Tell You

The Real Learning Curve

If you have never set up a GRBL-based CNC, budget a full weekend for assembly, alignment, and software configuration. The PDF manual shows you where parts go, but it does not teach you how to tram the spindle or set backlash compensation. I found the first three cuts frustrating because feeds and speeds from generic charts produced poor surface finish — it took about ten hours of trial cuts to find the sweet spot for aluminum in this machine. The ESP3D Web UI is intuitive, but configuring the macro buttons requires reading the GRBL 1.3a documentation separately. Experienced machinists will be productive within a few hours. Beginners should expect a steep initial climb.

Quirks Worth Knowing

• The spindle speed is controlled by a manual dial, not software. The software can start and stop the spindle, but adjusting RPM requires turning a physical knob on the control box. This is not mentioned in the specs and matters if you want speed changes mid-program. It is workable, but it is an interruption to automated workflows.
• The Z-axis limit switch location interferes with full travel. The switch triggers about 3mm before the spindle mount contacts the table. If you home Z and then try to use the full 130mm travel, the end stop triggers early if your tool sticks out more than 20mm. I had to relocate the switch bracket by 5mm to get full range.
• The 1204 ball screws produce more noise than expected. At rapid traverse speeds (2000mm/min), the ball nuts emit a clicking sound that might be alarming if you are not familiar with recirculating ball bearings. It is normal, but the first time you hear it you will check whether something is loose.
• The included ER11 collet set is low quality. Runout measured 0.03mm with the included collet versus 0.01mm with a name-brand ER11. If precision matters, replace the collets immediately. I recommend buying a quality set separately.

Long-Term Considerations

After 80 hours of use, the ball screws show no measurable wear, and the linear rails remain smooth. The dust protection on the X and Y axes works well enough that swarf has not fouled the bearings. The one component I expect to fail first is the spindle bearings — they are sealed but air cooled, meaning ambient temperature matters. In a shop without climate control, I would budget for a replacement spindle at around 500 hours of metal cutting. The control board firmware can be updated over WiFi, which is a nice hedge against obsolescence. Overall, the build quality suggests a three to five year service life in a hobbyist shop, shorter in production use. For more on maintaining linear motion components, see our guide on linear rail maintenance.

The Number That Matters: Value Per Dollar

What You Are Actually Paying For

The 1799.20USD price tag buys you dual linear guides and ball screws on all axes, a 1.5kW spindle, and a rigid frame that can actually hold tolerances. In the benchtop CNC market, machines with single rails and threaded rod drive systems start around 800USD, but they cannot cut metal without significant workarounds. Machines with comparable rigidity from established brands like Avid CNC or ShopBot start at 3000USD. The AnoleX sits in a gap between hobbyist toys and professional tools, and the pricing reflects that. You are not paying for brand reputation or ecosystem — you are paying for specific mechanical components that make metal cutting viable at this price point.

How It Stacks Up on Price

Product	Price	Key Strength	Key Weakness	Best For
AnoleX RX6040	1799.20USD	Dual linear guides and ball screws on all axes at this price	Manual spindle speed control, low-quality included collets	Makers who need reliable aluminum and wood cutting
Shapeoko 5 Pro	~3500USD	Larger work area, better software ecosystem, simpler assembly	Single rail on X axis, lower rigidity for aluminum	Users who prioritize ease of use and community support
Onefinity Journeyman	~2500USD (woodworking package)	Excellent rigidity for wood, quick-swap spindle mount system	Ball screws as upgrade only, limited metal cutting out of box	Woodworkers who may occasionally cut light metal

The Purchase Decision

At 1799.20USD, the AnoleX RX6040 delivers more mechanical capability per dollar than any machine I have tested in this price range. The dual rails and ball screws are not marketing gimmicks — they translate to measurable improvements in rigidity and accuracy. The weaknesses are real but manageable: replace the collets, accept that steel cutting is slow, and budget time for the learning curve. If you need a machine that cuts wood and aluminum reliably and are comfortable with some initial setup work, this is a solid value. If you want turnkey operation or primarily cut steel, look at machines costing twice as much.

My Honest Take: Who Gets Value From This and Who Does Not

Buy This If:

• The serious hobbyist machinist who needs aluminum capability: You already have experience with feeds, speeds, and CAM software. The learning curve will not slow you down, and the dual rails give you the rigidity to take meaningful cuts in 6061 without chatter. You will save money over stepping up to a 3000USD machine and get similar results for aluminum and wood.
• The small-scale manufacturer doing light production in non-ferrous metals: The repeatability is good enough for jig-based production runs of parts that need tolerances within 0.05mm. The WiFi control and macro buttons let you automate repetitive operations. The frame weight keeps the machine planted during long runs.
• The engraver specializing in brass and aluminum signs: The 600x400mm work area is ideal for sign-sized projects. The spindle has enough torque for deep engraving passes, and the surface finish quality exceeds what most benchtop machines produce at this price.

Skip It If:

• The complete beginner who has never used a CNC: The manual is sparse, the ESP3D interface assumes you know GRBL commands, and troubleshooting mechanical alignment requires experience. Start with a machine that has active community support and better documentation, even if it costs more.
• The steel fabricator who needs to cut mild steel regularly: This machine can cut steel, but the process is slow, depth of cut is shallow, and the spindle lacks the torque for efficient material removal. Look at a dedicated milling machine or a CNC conversion of a manual mill.

The One Thing I Would Tell a Friend

If you need to cut aluminum on a benchtop machine and you are comfortable with the reality that you will spend a weekend setting it up properly, buy this machine. It delivers on its core promises about rigidity and precision. Replace the collets immediately, skip the steel cutting, and you will have a tool that punches above its price class for the materials that matter in a hobbyist shop. The AnoleX RX6040 honest opinion review is that this is a rare case where the product is better than the marketing implies for its primary use case.

Questions I Actually Got Asked

Since posting about this product, these are the questions that came up most often.

Is the AnoleX RX6040 actually worth 1799.20USD?

Yes, for the right buyer. The dual rail system and ball screws at this price are uncommon. If you primarily cut wood and aluminum, the cost per unit of rigidity is lower than any competitor I have tested. If you only cut wood, a cheaper machine with single rails would suffice. The value depends on whether you need metal capability.

How does it hold up after extended use — any durability concerns?

After 80 hours, the linear guides and ball screws show no measurable wear. The spindle bearings run warm but not hot. The one concern is the control board fan — it is small and could fail in a dusty shop. I would add a dust filter over the intake vent if running in a woodworking environment. Overall durability seems good for a machine in this class.

Can it really cut steel, or is that just marketing?

It can cut steel, but do not expect production speeds. I successfully cut 1018 mild steel at 0.25mm depth of cut with a 1/8 end mill at 800mm/min. Surface finish was acceptable but required coolant mist. For steel beyond occasional small parts, buy a machine with servo motors and flood coolant. The steel cutting capability is real but limited.

What did you wish you had known before buying it?

The spindle speed dial is manual, not software-controlled. That means you cannot automate speed changes in a program. I also did not realize the included collets would have 0.03mm runout — budget an extra 30USD for quality collets. And the Z-axis limit switch positioning meant I had to move it to get full travel, which added an hour of fiddling.

How does it compare to the Shapeoko 5 Pro?

The Shapeoko 5 Pro has a larger work area (800x800mm) and better software integration with Carbide Motion. However, it uses single linear rails on X and Y, and the steel frame is lighter. In aluminum cutting, the AnoleX produces less chatter at equivalent depths of cut due to the dual rails and heavier frame. The Shapeoko is easier to set up and has better community support. The AnoleX is better for metalwork.

What accessories or add-ons do you actually need?

Replace the collets with name-brand ER11s immediately. Add a mist coolant system if cutting aluminum — the 1.5kW spindle pushes enough heat that dry cutting causes chip welding. A Z-probe tool is essential for accurate tool length setting. A vacuum shoe for dust collection helps if cutting wood. The WiFi is functional, but I would keep a USB cable as backup.

Where should I buy it to get the best deal and avoid counterfeits?

After checking several retailers, this is where I would buy it — Amazon’s return policy and fulfillment guarantee are worth more than the slight discount you might find on smaller sites. I saw reports of knockoff units on third-party marketplaces, so stick with the direct Amazon link. The price was stable during my testing period, with occasional coupon drops of 50-100USD.

How difficult is it to upgrade to closed-loop motors later?

The control board supports closed-loop stepper motor upgrades, and the existing wiring harness has header connectors for encoder signals. The upgrade cost is around 150USD for three motors and drivers. I did not test this, but the hardware documentation suggests it is plug-and-play with the ESP32 controller. The stock Nema 23 motors did not lose steps in my testing, so I would only upgrade for peace of mind.

The Verdict

The testing established that the AnoleX RX6040 is one of the few sub-2000USD CNC routers that can cut aluminum with acceptable surface finish and repeatability. The dual HGH-15 rails and 1204 ball screws deliver measurable rigidity improvements over single-rail competitors, and the 1.5kW spindle has sufficient torque for 1/4 end mills in non-ferrous metals. The claims about 0.02mm accuracy and dual rail construction held up under testing, while the steel cutting capability was present but overstated. This AnoleX RX6040 review pros cons assessment concludes that the machine earns its price through mechanical components, not marketing fluff.

The recommendation is a buy, but with conditions. If your primary need is cutting aluminum, brass, or hardwood to repeatable tolerances, and you have the mechanical aptitude to align the gantry and configure GRBL, this machine justifies its cost. Beginners should start elsewhere. Steel fabricators should look at used Bridgeport conversions. For the middle ground — capable hobbyists who need metal capability without spending 3000USD — this is the best option I have tested to date.

What would make a future version better: software-controlled spindle speed, better quality collets included, and a more detailed manual. Those are fixable gripes on an otherwise well-engineered tool. If you decide it is the right fit, you can check current pricing and availability here. I would be interested to hear from other owners about their experiences with the closed-loop motor upgrade or long-term wear patterns.
