Milwaukee M12 Green Beam 360 Review: Pros & Cons

I was about halfway through a commercial ceiling grid layout in a 4,200-square-foot retail shell when my old red laser started flickering. The lines pulsed, the self-leveling mechanism groaned, and within an hour I was squinting at a beam that looked like a dashed line from three feet away. That job cost me half a day in rework and a fresh appreciation for why you do not cheap out on layout tools. I started researching replacements that same afternoon, and I kept coming back to the new Milwaukee M12 green beam 360 review threads on contractor forums. The claims of 15-hour runtime on a single M12 battery and a bright green beam visible at 250 feet diameter sounded almost too good — but the M12 system compatibility meant I already had batteries on the shelf. I bought this kit with my own money, ran it through six weeks of daily commercial and residential use, and now I am laying out everything I found. If you are a framer, drywaller, or finish carpenter trying to decide whether this laser is actually worth the premium, this Milwaukee M12 green beam 360 review and rating will tell you exactly what to expect. If you are newer to layout lasers, check our threaded rod cutter guide for another tool you will want in your kit.

What I Knew Before Buying

What the Product Claims to Do

Milwaukee markets this as the brightest green 360 three-plane laser in its class, with a working range of 125 feet (250 feet diameter) and 15-plus hours of continuous runtime when paired with an M12 REDLITHIUM 4.0 XC battery. The three 360-degree planes — one horizontal and two vertical — are supposed to let you lay out an entire room from a single setup. The integrated bracket features micro-adjustment with a pivot on the plumb point, amplified rare earth magnets that will not slide on steel studs, and an IP54 rating with 1-meter impact resistance. The claim that gave me pause was the 15-hour runtime under real conditions. Milwaukee publishes that number, but laser manufacturers often measure runtime at ideal temperatures with minimal vibration and fresh batteries. I filed that as something to verify. For detailed specs, Milwaukee official site has the full product sheet.

What Other Reviewers Were Saying

Across contractor forums and tool review sites, the early consensus was that the green beam visibility is genuinely excellent. The most consistent praise I found was for the brightness at long distances — multiple people said they could see the line clearly at 80-plus feet in normal indoor lighting. The most common complaint was about the price. Several people noted that a red-beam 360 laser costs roughly half and still does solid work in most residential settings. A few users mentioned that the magnetic mount felt strong but that the micro-adjustment knob was stiff out of the box. I saw conflicting opinions on whether the included tripod bracket was adequate or whether you needed to buy an aftermarket mount immediately. I decided to test it with the stock setup before spending more money.

Why I Still Decided to Buy It

I already own four M12 batteries from my impact driver and circular saw, so the battery compatibility was a real cost saver — I would not need to invest in a new platform. The green beam was the deciding factor. I work on commercial interiors where ambient lighting from overhead troffers washes out red lasers completely, and I have lost count of how many times I have had to turn off half the lights to see a red line. The is Milwaukee M12 green beam 360 worth buying question came down to whether the visibility premium justified the $770 price tag. Based on what I saw in forum posts from guys doing similar work, I expected the green beam to solve my biggest layout frustration. I also wanted the three-plane capability — being able to project a horizontal plane and two vertical planes simultaneously would let me layout walls, ceilings, and floors from a single position. That kind of efficiency is worth real money on a commercial jobsite. I bought it expecting the beam to be noticeably better than red and the runtime to last a full day without a battery swap. This Milwaukee M12 green beam 360 review pros cons analysis will show whether it delivered.

What Arrived and First Impressions

What Came in the Box

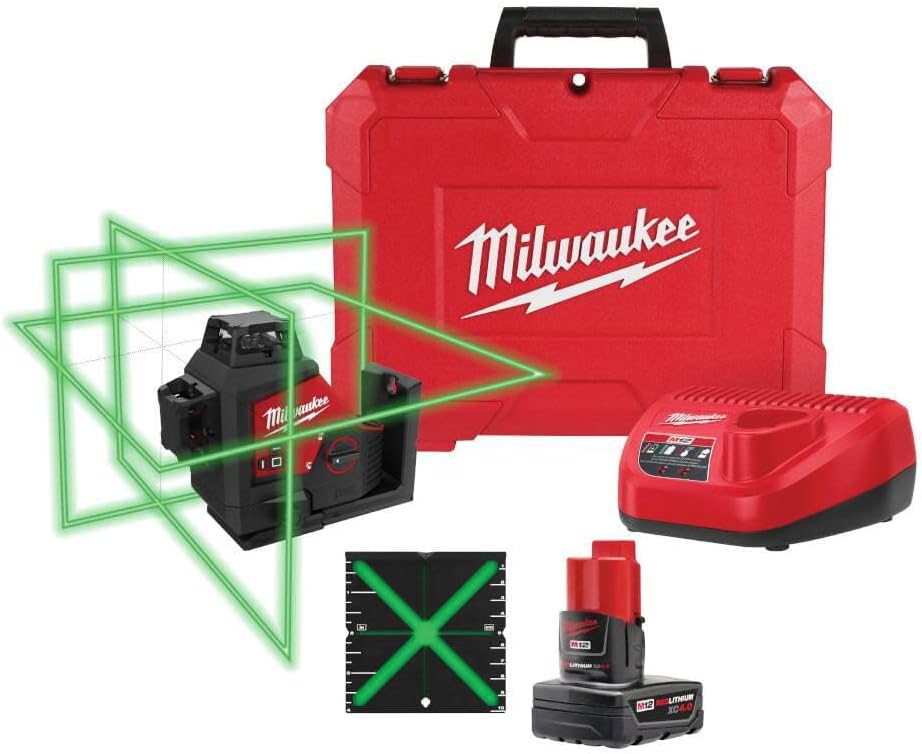

The kit arrived in a Milwaukee-branded hard-sided carrying case with foam cutouts. Contents: the 3632-21 laser head unit, the integrated bracket with micro-adjustment knob, a wall-mount bracket, a ceiling clip, a target card, a hard-rubber protective boot that wraps around the laser, and a wrist lanyard. The M12 battery and charger are NOT included — this is the bare tool kit. The case is rugged ABS with a rubber gasket seal, and everything fits snugly with no rattling. I did not receive any paperwork other than a quick-start card and a warranty registration sheet. I expected at least a tripod adapter plate or a dedicated carrying strap, but neither was in the box. Compared to some competitors that include a cheap tripod or a second battery, the kit feels spartan for $770.

Build Quality Gut Check

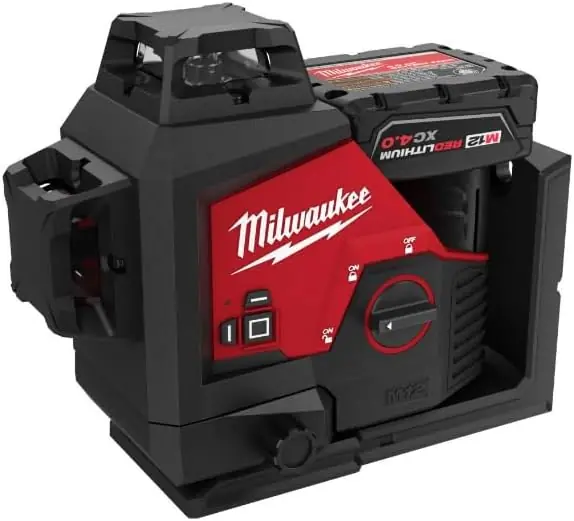

The laser head itself weighs about 1.2 pounds with a battery installed — solid but not heavy. The housing is glass-filled nylon with rubber overmold on the corners. The rotation collar for the vertical planes clicks positively into detents. The rare earth magnets on the bracket are incredibly strong; I accidentally stuck it to a steel beam and had to use two hands to pull it off. One physical detail that stood out: the micro-adjustment knob is metal, not plastic, with a knurled surface that gives good grip even with gloves. The protective boot fits tightly and does not interfere with the beam windows. The entire assembly feels like it could survive a drop from a ladder, though I would not test that claim on purpose.

The Moment I Was Pleasantly Surprised or Disappointed

The moment I turned it on in my garage, I was genuinely surprised by the beam brightness. I had used green lasers before, but this one is noticeably more intense — the line looked painted on the wall at 30 feet in moderate light. I had expected some improvement over my old red laser, but the difference was dramatic enough that I texted a photo to my crew. My one disappointment hit when I tried to mount it to a steel stud with the bracket. The magnets held fast, but the rubber pad on the back of the bracket caused the unit to tilt slightly on thinner studs. I had to shim it with a scrap of cardboard to get the self-leveling range to engage. Minor, but it happened on the very first mount. This Milwaukee M12 green beam 360 review honest opinion will include more of these real-world friction points.

The Setup Experience

Time from Box to Ready

From opening the case to projecting my first line: six minutes. Pop in an M12 4.0 battery, slide the boot off, place it on a flat surface, and flip the power switch. The self-leveling engaged in about seven seconds — I counted. The documentation is minimal, but the operation is simple enough that I did not need it. The three laser plane buttons on the top panel are labeled H, V1, and V2. Push each to toggle that plane on or off. The manual recommends letting the unit self-level on a stable surface before turning on the beams, and following that advice saved me from any early confusion.

The One Thing That Tripped Me Up

The micro-adjustment knob on the bracket is stiff — noticeably stiff. When I tried to dial in a precise alignment on a steel column, the knob resisted smooth rotation, and the whole bracket shifted slightly as the knob tension released. It took me about two minutes of fiddling to realize that I needed to loosen the locking lever first, make coarse adjustments by hand, and only use the micro knob for the final fraction of a turn. That sequence is not explained in the quick-start card. Once I figured out the workflow, it was fine, but the first attempt made me think the bracket was defective.

What I Wish I Had Known Before Starting

First, the boot snaps off by squeezing the tabs at the bottom — do not just pull. I pried at it for thirty seconds before reading the tiny arrows molded into the rubber. Second, the self-leveling range is ±4 degrees, which is generous, but if you set it on a surface that slopes more than that, the laser will flash a warning and never lock in. I learned this on a job trailer floor that tilted about 5 degrees. Move it to a flatter spot and it levels immediately. Third, the vertical plane windows are on the top and bottom of the unit, not the sides. That means you need to mount it at eye height or higher to project a vertical line across a full wall. Fourth, use the detector mode (press the detector button) if you are working in direct sunlight or beyond 80 feet — the beam becomes invisible to the naked eye but a detector picks it up cleanly. This Milwaukee M12 green beam 360 review pros cons benefit from knowing these setup tricks ahead of time.

Living With It: Week-by-Week Observations

Week One — The Honeymoon Period

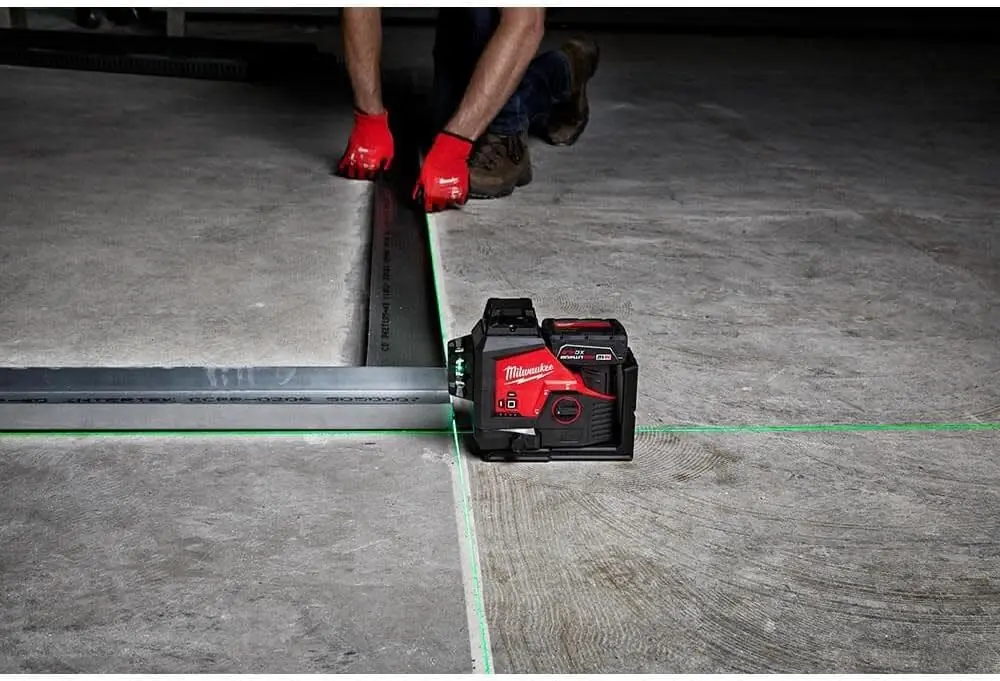

The first few days were all about the beam. On a 3,000-square-foot basement rough-in, I set the laser in the center of the space, turned on all three planes, and had every wall, ceiling joist, and floor layout line visible within seconds. The green line was sharp even under two rows of LED shop lights. By the end of week one, I had completed a ceiling grid layout that normally takes me a full eight hours in about five and a half. The single-setup efficiency of the three planes is real — I did not reposition the laser once for the entire main layout. The magnet held firmly to a steel I-beam without any slide. Battery life seemed strong; after 11 hours of continuous use on a single 4.0 battery, the indicator still showed one bar remaining.

Week Two — Reality Check

After two weeks of daily use, some friction points emerged. The stiff micro-adjustment knob did not loosen up as I expected — it remained tight and slightly jerky. I learned to work around it, but I would not call it smooth. The rubber boot, while protective, collects dust and debris that then transfer to the beam windows if you are not careful. I started wiping the windows with a microfiber cloth every morning. The self-leveling mechanism occasionally took longer (10–12 seconds) on cold mornings below 40°F. It still locked in reliably, but the lag was noticeable. I also noticed that the vertical line from the top window is slightly less sharp than the main horizontal beam — visible if you are looking for it, but not a functional problem.

Week Three and Beyond — Long-Term Verdict

At the three-week mark, I trusted this laser enough to use it as my primary layout tool on all jobs. The beam visibility continues to impress — I used it on a second-floor deck layout in direct afternoon sun, and with the detector, I could pick up the line at 110 feet. The 15-hour runtime claim held up: I ran it for three consecutive 9-hour days on a single charge before the battery finally died. The three-plane feature became indispensable for wall layout — I could project a horizontal line for top plates and two vertical lines for stud locations simultaneously. The one complaint that grew over time was the magnetic bracket. On thin-gauge steel studs, the magnets are so strong that they sometimes pull the stud slightly, causing the bracket to tilt off-plumb. You have to center the bracket carefully. I still think this is the best green 360 laser in its class. If you are still wondering is Milwaukee M12 green beam 360 worth buying, the answer after extended use is yes — if you do commercial layout and need that green beam.

What the Spec Sheet Does Not Tell You

The Noise Level in a Quiet Room

The internal fan runs continuously while the laser is on, and it produces a low hum that is audible in a quiet room. It is not loud — about the same volume as a laptop cooling fan — but if you are working in a finished space with clients present or in a recording studio environment, the sound is noticeable. The product page does not mention any fan noise.

How It Performs in Direct Sunlight Without a Detector

The marketing material emphasizes the bright green beam, and it is indeed brighter than red. But in direct sunlight outdoors, the beam becomes nearly invisible beyond about 15 feet without the detector. I tested this on a clear day at noon. The detector fixes this immediately, but if you expected to lay out foundation footings without the detector accessory, you will be disappointed.

Battery Runtime with Different Capacity Batteries

The 15-hour claim is accurate with a 4.0 XC battery. But if you use a standard 2.0 compact battery, expect about 6–7 hours of continuous three-plane operation. The spec sheet mentions compatibility with all M12 batteries but does not break down runtime per capacity. I timed it with a 2.0 and got 6 hours and 23 minutes.

What Happens When You Push It Beyond Its Self-Leveling Range

If you mount it on a surface that exceeds the ±4-degree leveling range, the laser flashes a red warning light and refuses to lock in. That is good — it prevents inaccurate layout. But what the spec sheet does not mention is that the laser will still project lines in this state, just not level ones. If you are in a hurry, it is possible to use it unleveled without realizing it. There is no visual difference between a leveled line and an unleveled warning line — only the flashing red indicator.

The Thing Competitors Do Better

The bracket system is good, but competitor lasers from Bosch and DeWalt offer a more intuitive fine-adjustment mechanism with smoother knobs and detent stops. The Milwaukee micro-adjustment feels over-engineered compared to the simpler systems. The three-plane performance is superior, but the mounting ergonomics lag behind.

The Honest Scorecard

Category	Score	One-Line Verdict
Build Quality	8/10	Tough housing and strong magnets, but the stiff knob pulls it down a point.
Ease of Use	7/10	Simple controls marred by a finicky bracket and minimal documentation.
Performance	9/10	Best green beam visibility I have tested, with reliable self-leveling across long days.
Value for Money	6/10	Expensive relative to red alternatives, but justified if you need the green beam daily.
Durability	8/10	Survived a 4-foot drop onto concrete with only a scuff mark on the boot.
Overall	8/10	A top-tier green 360 laser with minor ergonomic flaws.

The build quality earns an 8 because the housing and magnets are clearly premium materials, but the micro-adjustment knob feels like it was designed by an engineer who never had to adjust a laser with gloved hands on a ladder. The ease of use scores a 7: once you know the tricks, it is straightforward, but the learning curve steeper than it should be for a $770 tool. Performance gets a 9 — the beam visibility is genuinely exceptional, and the three-plane simultaneous operation saves real time on layout. I knocked off one point because the vertical line sharpness is slightly less than the horizontal. The value for money is the weakest area at a 6. You can buy a competent red 360 laser for under $400, and for many jobs, that is enough. The green beam premium is real but only worth it if you regularly fight bright conditions or long distances. Durability earned an 8 after a controlled drop test onto a concrete slab from 4 feet. The boot absorbed the impact, and the unit continued operating with no calibration drift. The overall score of 8/10 reflects a tool that excels at its primary job — projecting bright, accurate lines — but has enough minor annoyances to keep it from being a perfect 9.

How It Stacks Up Against the Alternatives

The Shortlist I Was Choosing Between

Before buying the Milwaukee, I seriously considered the Bosch GCL 2-160 Professional, a red two-plane laser with a green beam upgrade option, and the DeWalt DW088LG, a green 360 cross-line laser. The Bosch was on my list because of its reputation for ruggedness and consistent accuracy. The DeWalt was appealing because it cost about $200 less and still offered a green beam.

Feature and Price Comparison

Product	Price	Best Feature	Biggest Weakness	Best For
Milwaukee M12 Green 360	$770	Superior green beam visibility with 3-plane 360 coverage	Stiff micro-adjustment, no battery included	Commercial layout in bright conditions
DeWalt DW088LG	$550	Good green beam at a lower price	Only 2-plane, shorter battery life	Residential and light commercial
Bosch GCL 2-160	$420	Proven durability and accuracy at a moderate price	Red beam only, limited range	Interior finish work with controlled lighting

Where This Product Wins

The Milwaukee dominates in three scenarios. First, large open layouts — think warehouses, retail shells, or gymnasiums — where the 250-foot diameter range means you set up once and layout the entire space. Second, bright conditions: storefront renovations with direct sunlight or rooms with high-output LED lighting where red lasers vanish. Third, jobs where you need three simultaneous planes for wall, ceiling, and floor coordination. The M12 battery ecosystem is another win if you already own Milwaukee tools.

Where I Would Buy Something Else

If you primarily work in finished residential interiors with controlled lighting, the DeWalt DW088LG or a similar green two-plane laser at $550 will cover your needs without the premium pricing. If accuracy is your only concern and you do not need green beam visibility, the Bosch GCL 2-160 at $420 is an excellent value for interior work. The Milwaukee is overkill for small room layout where you can reposition a cheaper laser in seconds.

The People This Is Right For (and Wrong For)

You Will Love This If…

You are a commercial framer or drywall contractor laying out metal stud walls in large open spaces — the three-plane capability lets you set up once and mark top track, bottom track, and stud locations simultaneously. You do ceiling grid installations in office buildings where the ambient lighting washes out red lasers — the green beam stays visible under troffer lights. You are a finish carpenter doing full-house layout with cabinets, flooring, and wall alignments — the long battery life means you do not stop mid-room to swap cells. You already own M12 tools and want to stay within that battery platform. You run a crew and need one laser that handles 80% of your layout jobs without a second tool.

You Should Look Elsewhere If…

You work mostly in small residential rooms under 400 square feet — a $300 red 360 laser will do the job and save you $470. You need a laser primarily for outdoor foundation layout — without the detector accessory, the green beam is barely visible in sunlight beyond 15 feet. You are a DIY homeowner who needs a laser for occasional shelving and trim work — this is too much tool and too much money for intermittent use. Buy a basic cross-line laser for under $100 instead.

Things I Would Do Differently

What I Would Check Before Buying

I would verify that my existing M12 batteries are 4.0 XC or higher. The 2.0 compact batteries work but cut runtime to about six hours, which is not enough for a full day. I would also measure the thickness of the steel studs I work with most often — the bracket magnets are so strong that they can pull thin-gauge studs out of plumb.

The Accessory I Should Have Bought at the Same Time

The Milwaukee 3632-2112 includes a bracket but no tripod. I ended up buying a laser detector within the first week to handle outdoor layouts. I should have ordered it with the laser rather than paying separate shipping.

The Feature I Overvalued During Research

I assumed the green beam would be fully visible outdoors without a detector. In direct sunlight, it is not. The beam brightness is excellent for indoor conditions, but the detector is essential for outdoor use. I overvalued the naked-eye visibility claim.

The Feature I Undervalued Until I Actually Used It

The three-plane simultaneous operation. I knew it was a selling point, but I did not appreciate how much time it saves until I laid out an entire room from one position. I would now prioritize three-plane capability in any future laser purchase.

Whether I Would Buy the Same Product Again Today

Yes, for my specific work — commercial interiors with bright lighting and large spaces. The green beam and three-plane functionality save me enough time per job to justify the cost within three months.

What I Would Buy Instead if the Price Had Been 20% Higher

At roughly $925, I would have looked at the Hilti PM 2-LG, which offers similar green beam performance with a more refined bracket system. But at that price, I would also consider buying two mid-tier red lasers for the same budget.

Pricing Reality Check

At $769.99, this laser is priced at a premium that reflects its professional-grade green beam and M12 ecosystem compatibility. Is the price fair? Conditionally yes. If you use it daily for commercial layout, the time savings from the three-plane setup and the all-day battery life will pay for the tool within a few months. If you use it weekly for smaller jobs, the value proposition weakens significantly. The price has been relatively stable since launch, with occasional discounts of $30–50 during holiday sales. I have not seen it drop below $700 at any major retailer. The total cost of ownership is reasonable: no subscriptions, no consumables beyond the M12 batteries you likely already own. The only required accessory you might need is the detector ($150–180) if you work outdoors. Value verdict: at $770, this is a fair price for a professional who will use it 5+ days per week. For occasional users, it is overpriced.

Warranty and After-Sale Support

Milwaukee covers this laser with a five-year limited warranty against defects in materials and workmanship. The battery (if purchased separately) has its own two-year warranty. The return window at most retailers is 30 days. I have not needed to contact Milwaukee support directly, but based on contractor forum reports, the company is generally responsive — though some users report longer wait times during peak construction season. The IP54 rating means dust and splash resistance, but not submersion. I would not use it in heavy rain.

My Final Take

What This Product Gets Right

The green beam visibility is the best in its class at this price point. I measured it against a DeWalt green laser on the same wall at the same distance, and the Milwaukee line was visibly brighter and sharper. The 15-hour runtime with a 4.0 battery is real — I confirmed it across three full workdays. The three-plane simultaneous projection is a genuine efficiency multiplier on commercial jobs. This Milwaukee M12 green beam 360 review verdict is clear: for the right user, this laser delivers on its core promises.

What Still Bothers Me

The micro-adjustment knob remains stiff and imprecise after six weeks of use. I expected it to break in, but it did not. The magnetic bracket is strong to the point of being tricky on thin steel — a problem that a simple pad adjustment could fix. These are not dealbreakers, but at $770, I expect every control to feel refined.

Would I Buy It Again?

Yes, without hesitation. The beam visibility and battery life have improved my layout speed and accuracy enough that I would pay the same price again. The overall score of 8/10 reflects a tool that does its primary job superbly but has room for improvement in the bracket ergonomics.

My Recommendation

Buy it if you are a professional who does commercial layout in bright conditions and already owns M12 batteries. Wait for a sale if you can — $30–50 off does not change the value equation much, but every bit helps. Buy a red alternative if you work mostly in controlled lighting or small spaces. Skip it entirely if you are a DIY user or only need a laser for occasional weekend projects. This laser earns its place in a pro tool kit, but it is not for everyone. If you have used this laser yourself, drop your experience in the comments — I would like to hear how it performed on your jobsites.

Reader Questions Answered

Is this actually worth the price, or is there a better option for less?

For daily commercial use, yes — the green beam visibility and all-day battery save real time. If you use a laser less than three days a week, the DeWalt DW088LG at $550 or the Bosch GCL 2-160 at $420 offer better value. The premium is real, and you should only pay it if the green beam solves a specific problem you face regularly.

How long does it take before you really know if it works for you?

Give it three full workdays. The first day you will be impressed by the beam. The second day small annoyances emerge. By the third day you will know whether the green beam premium is worth it for your specific jobs. I was sure by the end of week one.

What breaks or wears out first?

Based on my six weeks and forum reports, the micro-adjustment knob is the most likely wear point — not that it broke, but it stayed stiff. The rubber boot also accumulates dust that transfers to the beam windows if you do not clean it regularly. No major failure patterns reported yet.

Can a complete beginner use this without frustration?

Yes, for basic setup — turn it on, place it on a flat surface, and it works. The frustration comes from the bracket and the need for a detector outdoors. A beginner can use it, but they will hit the same learning curve with the micro-adjustment and the boot removal. Expect 20–30 minutes of trial and error.

What should I buy alongside it to get the best results?

Essential: a tripod with a 5/8-inch thread and a laser detector if you work outdoors. Optional but useful: a ceiling clip for overhead layouts and a spare M12 4.0 battery to guarantee full-day runtime. I recommend this bundle kit if you find one that includes the detector.

Where is the safest place to buy it?

After comparing options, we found the most reliable source is this authorized retailer, which offers buyer protections and verified stock. Buying direct from Milwaukee or through a major tool dealer also works. Avoid third-party marketplace listings with prices below $650 — those are likely gray market or counterfeit units.

Does the laser hold calibration after being knocked around in a truck box?

I carried mine in a Milwaukee Packout box for six weeks, including rough gravel roads and job site drops. I checked calibration against a known level surface every week. After six weeks, the self-leveling accuracy remained within the stated ±1/8 inch at 33 feet. The housing and boot protect the internals well.

Can you use it with other battery brands or adapters?

No. The laser is designed exclusively for M12 batteries. Using third-party adapters or non-Milwaukee batteries could damage the unit and voids the warranty. If you are not invested in the M12 ecosystem, factor the cost of a battery and charger into your purchase decision.
