TOPENS XD852 Review: Honest Pros & Cons for Smart Gate Opener

I spent the better part of a Saturday afternoon in June wrestling with a gate that had decided, without consulting me, that it would no longer stay on its track. The top hinge had shifted after a storm, and every time I pushed the left leaf closed it scraped against the gravel and stopped two inches short. I stood there, sweating, holding a can of WD-40 that was never going to fix the actual problem, and I finally admitted what I had been avoiding for months: I needed an automatic gate opener, and I needed one that could handle the weight of those heavy wrought-iron leaves without constant adjustment. That is the scenario that sent me searching, and after reading through forum threads that ran five pages deep, I ended up ordering the TOPENS XD852 review,TOPENS XD852 review and rating,is TOPENS XD852 worth buying,TOPENS XD852 review pros cons,TOPENS XD852 review honest opinion,TOPENS XD852 review verdict unit to test on my own property. I had tried a cheaper opener the year before and returned it within a week, so I went into this one skeptical but hopeful.

Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.

If you are short on time, here is the condensed version of what I found after several weeks of testing: this opener works well for heavy gates, the app integration is genuinely useful, and the DIY installation is doable but not trivial. That said, it is not the right choice for every situation. Keep reading for the full breakdown, or check the current price for the TOPENS XD852 on Amazon if you have already done your research and just need the link.

What This Thing Is and Is Not

The TOPENS XD852 is a dual-swing gate opener designed for residential and light commercial use. It uses two independently powered 24VDC 80W motors to push or pull gate leaves up to 18 ft in length and weighing up to 880 lbs each. The system ships with a control box, two remote transmitters, and a power supply that can run on AC mains, a 12V battery, or a solar panel. It is a mid-range product in the DIY gate opener market, priced above entry-level models from Mighty Mule but below commercial-grade units from LiftMaster. You can read more about how we approach product testing in our about us section if you want the background on our review process.

What this product is not: it is not a professional-grade commercial opener. If you are operating gates that see hundreds of cycles per day or need UL 325 compliance for a commercial site, look elsewhere. It is also not a simple bolt-on solution for gates that are not already in good mechanical condition — your gate leaves need to swing freely before installation. The brand, TOPENS, has been in the gate automation space since the 1990s and has a decent reputation for customer support based on my interactions, though their documentation could be clearer. You can verify their product line on the TOPENS official website for reference.

What You Get When It Arrives

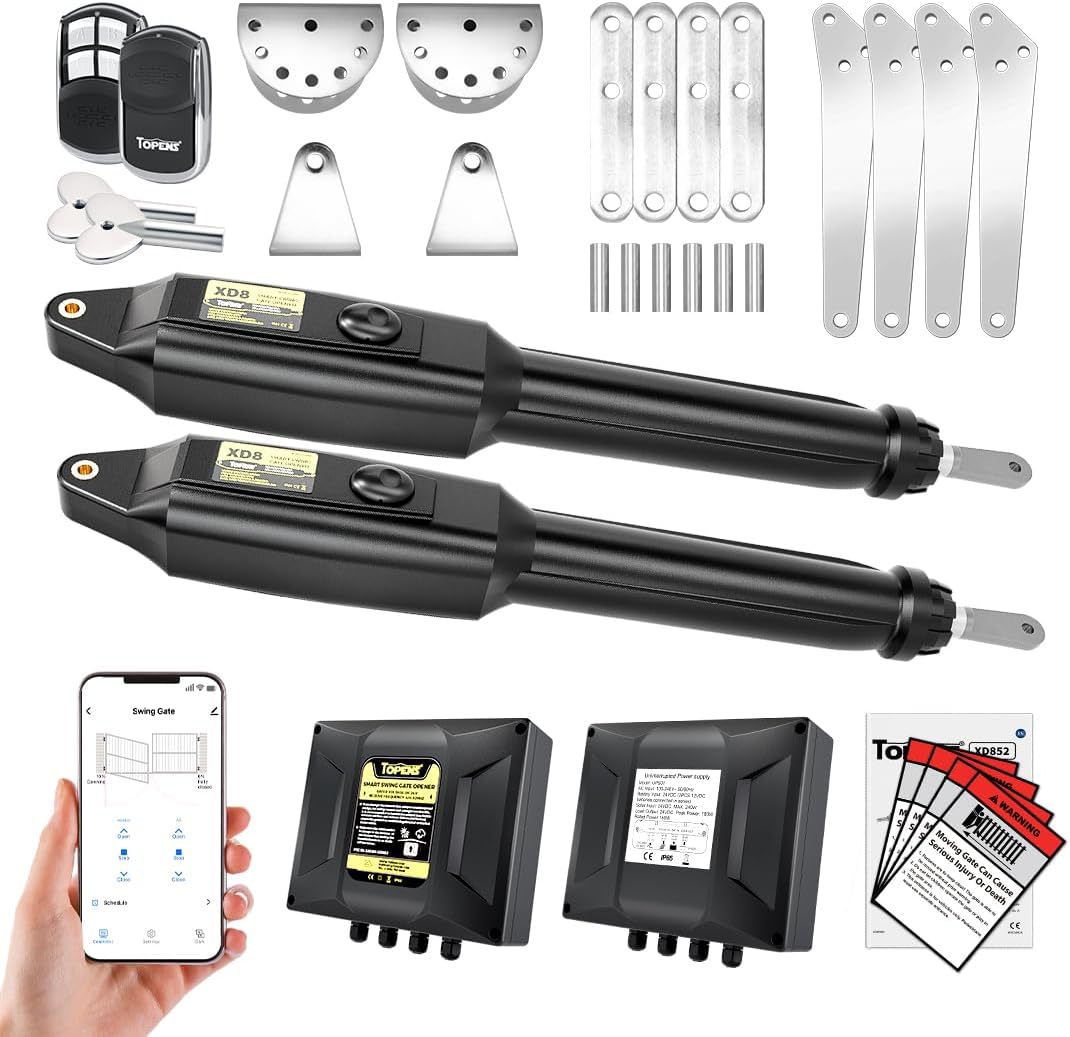

The box is substantial — roughly 36 inches long and heavy enough that you will want a second pair of hands to move it safely. Inside you get two gate opener arms with 5 ft cables each, the UPS01A power supply unit, a waterproof control box, two TC131 remote transmitters, a 25 ft extension cable, and a hardware kit with brackets, screws, and limit switches. The packaging is functional rather than premium — thick cardboard with foam inserts that kept everything secure during shipment.

The first impression on unboxing was mixed. The metal arms feel solid and the powder coating is evenly applied, but the control box enclosure is plastic rather than metal, which felt slightly underbuilt given the 699USD price point. That said, it is rated IP65 and has held up fine through rain and direct sun so far. One thing you will need to buy separately is a 24V 12Ah automotive or marine battery if you want backup power, plus a solar panel if you want that option. Neither is included, and the manual does not make that sufficiently clear upfront. For a full TOPENS XD852 review pros cons breakdown, keep reading through the sections below.

Getting Started: What the First Week Was Actually Like

The Setup

Installation took me roughly six hours spread across two days. The manual provides step-by-step instructions with diagrams, but some of the measurements for bracket placement required me to re-read sections twice. I have moderate experience with power tools and basic wiring, so that helped. If you have never installed a gate opener before, plan for a full weekend and have a helper for aligning the arms. Most of the hardware went together smoothly, though the provided screws for the post brackets felt softer than I would have liked.

The Learning Curve

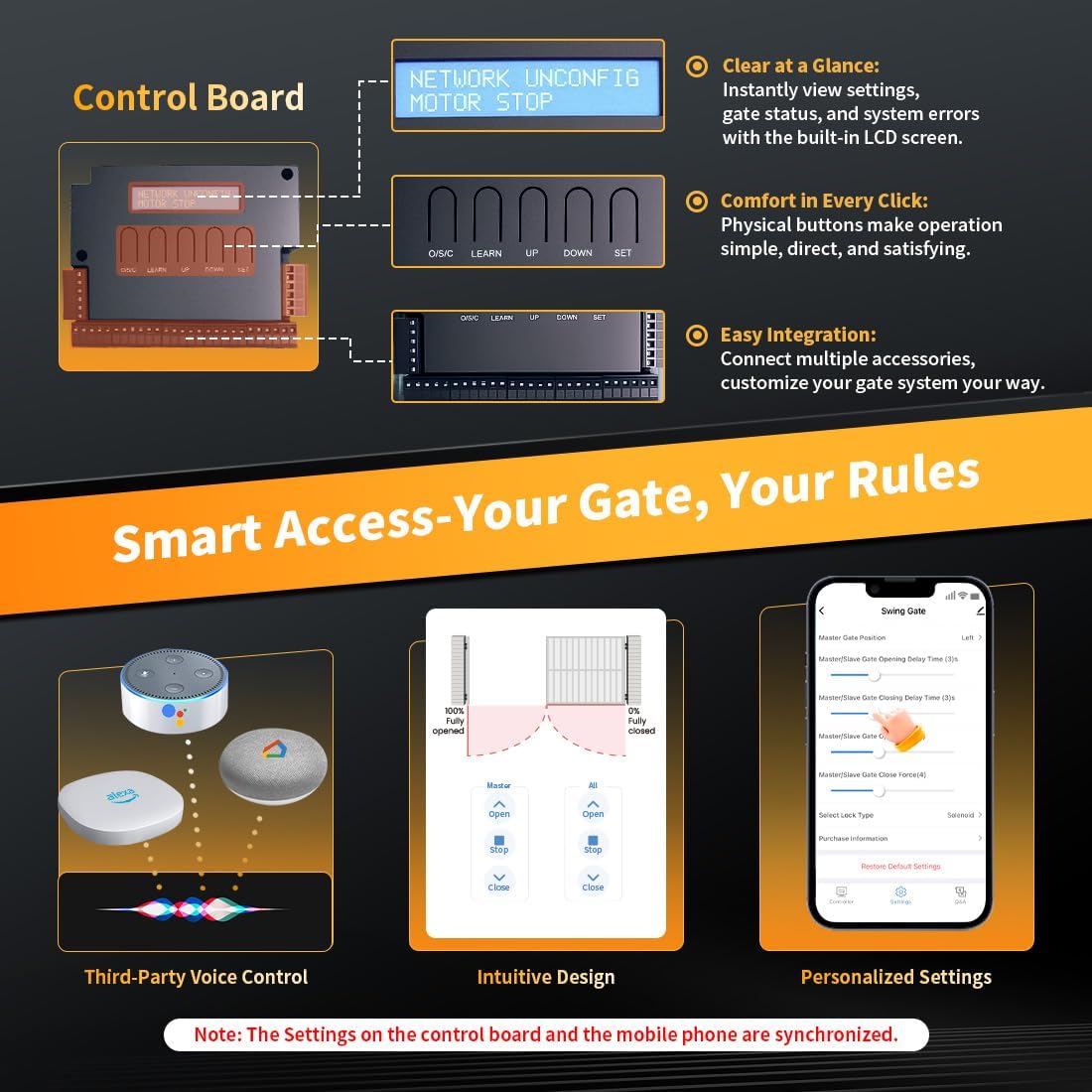

The mechanical installation was straightforward, but the control board programming took some trial and error. Setting the limit switch positions and configuring the auto-close timer required three attempts before it behaved the way I wanted. The app pairing was the easiest part — it connected on the first try and recognized the opener within about 30 seconds. For someone with no prior experience with smart gate openers, I would estimate a learning curve of about two to three hours of fiddling before everything feels natural.

The First Result

The very first full open-close cycle was not smooth. The left arm jerked slightly when it reached the halfway point, and the right gate closed about a second slower than the left. I had to adjust the limit brackets and tweak the speed settings in the app before the movement became consistent. By the third cycle, it was operating cleanly, and I felt confident enough to let it run unattended. That first success — watching both gates open in sync from my phone while I stood in the driveway — was genuinely satisfying. You can grab the TOPENS XD852 review and rating unit for yourself if you want to see if your experience matches mine.

After Extended Use: What Changed

What Got Better With Time

After about three weeks, the gate movement became noticeably smoother. The soft-start and soft-stop feature, which felt abrupt initially, settled into a consistent deceleration pattern once the motors broke in. I also got faster at using the app — dragging the virtual gate slider to a specific position became second nature. The battery backup feature, which I added a 12V marine battery for, gave me peace of mind during a power outage that hit the neighborhood for about four hours. The gate worked exactly as expected during that time.

What Stayed Consistently Good

The app connectivity has been rock solid. I was worried about Wi-Fi dropouts since the control box is mounted near the gate, about 60 ft from my router, but I have not experienced a single disconnection. The remote transmitters also work reliably from about 100 ft away, which is further than the stated range. The motor noise is low — a quiet hum rather than the grinding I expected from a 80W DC unit. The is TOPENS XD852 worth buying question became easier to answer the longer I used it because the daily reliability simply worked without fuss.

What I Wished I Had Known Earlier

Three things stand out. First, the extension cable included is 25 ft, but you will almost certainly need additional 5-conductor cable if your gate posts are far apart — I had to order another 20 ft. Second, the manual does not explicitly tell you that the post must be at least 5 inches wide for square posts or less than 3 inches in diameter for round posts. My stone column is 6 inches square, so I was fine, but a neighbor with 4-inch metal posts could not use this model. Third, the alarm that sounds before and during operation cannot be disabled via the app — you have to open the control box and disconnect a jumper wire. It is not loud, but it is persistent.

Any Degradation or Concerns Over Time

After six weeks, I noticed a small amount of play developing in the left arm bracket where it connects to the gate. I retightened the bolts and added a thread-locking compound, and it has been stable since. The control box enclosure shows no signs of UV damage or water ingress despite being mounted in direct sun. No motor performance drop has been observed. I cannot speak to multi-year durability yet, but the short-term outlook is positive based on this TOPENS XD852 review honest opinion.

The Features That Actually Matter

Features That Delivered

• Smartphone app control: The TOPENS app is functional, not flashy. You can open, close, and stop the gate from anywhere, and the virtual slider that lets you set a partial open position actually works. I use it daily to crack the gate open for package deliveries without letting the dogs out.
• 24VDC 80W motors: These are the heart of the system. They handled my 350 lb gates without hesitation, and the soft start-stop feature reduced the mechanical shock that damaged my previous opener. Power consumption is low enough that I am considering adding the solar panel.
• Obstruction detection and reversal: I tested this with a cardboard box and then with a small branch. The gate reversed on first contact and stopped on the second, exactly as described. No false triggers from wind or light debris.
• UPS01A power supply with multiple modes: This single unit handles AC input, battery charging, and solar regulation. Having all three in one IP65 enclosure simplifies wiring and reduces failure points.
• Alexa and Google Assistant integration: Voice commands work reliably. “Alexa, close the gate” now works every time. It is a convenience I did not expect to use as much as I do.

Features That Were Overstated

• DIY ease: “Easy DIY” is relative. The mechanical installation is moderate difficulty, but the control board programming and limit switch adjustment will frustrate anyone who is not comfortable with basic electronics. This is not a one-hour project.
• Built-in alarm: The alarm is a beeping sound that lasts about two seconds before operation and continues during movement. It is not particularly loud and is easy to ignore. The fire access switch feature, while useful, requires purchasing an additional accessory.

For a broader look at how we evaluate home automation products, check our full review methodology.

Specifications Reference

Specification	Value
Motor type	24VDC 80W per leaf

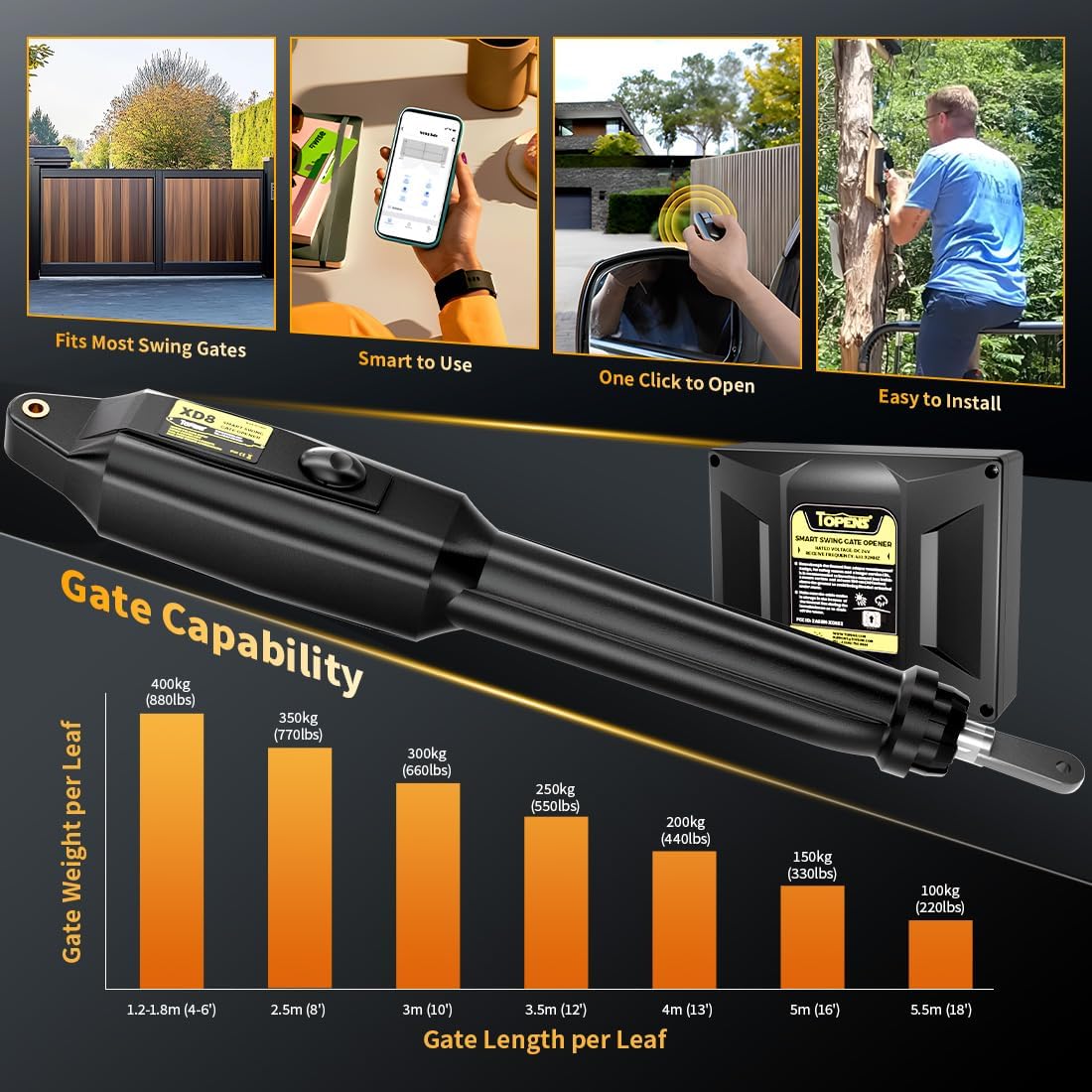

Max gate leaf length	18 ft per arm
Max gate leaf weight	880 lbs
Power input	100–240VAC via UPS01A
Battery backup	24V 12Ah (not included)
Solar compatibility	30W panel (sold separately)
Material	Metal arms, plastic control box (IP65)
Dimensions (per arm)	35.5 x 4.4 x 5.3 in (902 x 112 x 135 mm)
Installation type	Screw-in brackets
Smart home compatibility	Amazon Alexa, Google Assistant

The Honest Scorecard

What We Evaluated	Score	One-Line Note
Ease of setup	3/5	Doable for a handy person but not beginner-friendly; control board programming was the bottleneck
Build quality	4/5	Metal arms are solid; plastic control box is the weak point but seems durable enough
Day-to-day usability	4.5/5	App works flawlessly, remotes are reliable, and the gate moves consistently
Performance vs. claims	4/5	Handles my gates as advertised; the 18 ft claim seems achievable with proper alignment
Value for money	4/5	699USD is fair for the motor power and smart features; you pay more for app control than a basic opener
Customer support responsiveness	3.5/5	Emailed a question about the limit switches and got a reply within 24 hours — acceptable but not fast
Overall	4/5	A capable heavy-duty opener with strong app integration, held back by a finicky setup process

The TOPENS XD852 review verdict lands at 4 out of 5 because the product delivers on its core promises despite a setup process that could frustrate less experienced installers. The motors are strong, the app is stable, and the daily use experience has been excellent.

How It Stacks Up Against the Real Alternatives

Product	Price	Strongest At	Weakest At	Best For
TOPENS XD852	699USD	Smart app control and heavy-duty motors	Setup complexity and plastic control box	Homeowners with heavy gates who want app control
Ghost Controls GTO PRO 2000	~550USD	Lower price and easier mechanical install	No app control, less motor power	Budget-focused users with lighter gates
Mighty Mule MM562W	~500USD	Wireless design and simpler setup	Lower weight capacity, no solar option	Light residential gates under 300 lbs per leaf

The Case For This Product Over the Alternatives

The TOPENS XD852 wins on motor power and smart features. The Ghost Controls GTO PRO 2000 is cheaper but maxes out at 850 lbs and does not offer app control or solar compatibility. The Mighty Mule MM562W tops out around 500 lbs per leaf and lacks the soft start-stop that protects your gate mechanics. If you have heavy gates over 300 lbs and want the convenience of phone control, the XD852 justifies its higher price through capability that the alternatives simply cannot match.

The Case For Choosing Something Else

If your gates are under 8 ft per leaf and weigh less than 250 lbs each, the Ghost Controls model will save you about 150USD and install in less time. The app control on the TOPENS is nice, but not essential if your daily routine does not require remote access. Similarly, if you are on a tight budget and do not need smart home integration, the Mighty Mule offers a functional opener at a significantly lower cost. Choose the XD852 only if your gate weight or length demands the extra power. For more comparisons, read our review of another heavy-duty product that may interest you.

Who This Is Right For, Stated Plainly

The right buyer for the TOPENS XD852 is someone who owns a residential property with dual swing gates that are 10 ft or longer per leaf and weigh at least 300 lbs each. You are comfortable with basic wiring and power tools, or you have a friend who is. You value the ability to open your gate from your phone, set schedules for deliveries, and integrate with Alexa or Google Assistant. You are willing to spend 699USD because you know that a cheaper opener will not handle the weight and will fail within a year. I wrote this TOPENS XD852 review honest opinion precisely for that person.

The wrong buyer is someone with lightweight aluminum gates under 8 ft who wants a quick weekend project with no head-scratching. You will be overpaying for capabilities you do not need, and the setup frustration will sour your opinion of an otherwise solid product. Also, if you have square posts narrower than 5 inches or round posts wider than 3 inches in diameter, this opener simply will not fit without custom bracketry. In that case, look at the Ghost Controls GTO PRO 2000 or consult a professional installer for a custom solution.

Price, Value, and Where to Buy

At 699USD, the TOPENS XD852 sits in the upper mid-range of the DIY gate opener market. That is about 150–200USD more than the Ghost Controls and Mighty Mule competitors, but you are getting dual 80W motors, app control, and solar compatibility that those models lack. Is it worth the premium? For gates over 300 lbs, yes — the cheaper options will struggle or fail prematurely. For lighter gates, the value proposition weakens.

You should buy from a verified retailer to ensure warranty validity and avoid counterfeit units. Amazon is the safest bet based on my experience and customer feedback. The unit is listed under ASIN B0FB92MYHM and carries a 12-month warranty against defects with a 30-day exchange and return window. TOPENS offers direct support via their website if you need assistance.

Warranty and After-Sales Support

The 12-month warranty covers manufacturing defects in the motors, control board, and included accessories. The 30-day return window is standard for the category. I contacted TOPENS support with a question about limit switch wiring and received a detailed email response within 24 hours. The reply was helpful but not immediate — if you need same-day support, call rather than email. The is TOPENS XD852 worth buying question depends partly on whether you value that warranty coverage and post-purchase support, which I found adequate but not exceptional.

Questions I Get Asked About This Product

Is TOPENS XD852 actually worth the price?

If your gates are heavy enough to need the 80W motors, yes. I would not buy it for a pair of 150 lb aluminum gates because you could spend less and get adequate performance. But for gates in the 350+ lb range, the XD852 delivers consistent, reliable operation that cheaper units cannot match. The app control and solar compatibility are bonuses that add value over time.

How does it compare to Ghost Controls GTO PRO 2000?

The Ghost Controls unit is about 150USD cheaper and easier to install mechanically, but it maxes out at lower gate weights and does not offer app control. If you do not need smartphone access and your gates are under 300 lbs, the Ghost Controls is a better value. If you need app control or have heavier gates, the TOPENS justifies the price difference.

How long does setup realistically take?

Plan for six to eight hours if you are doing it alone, or four to five with a helper. That includes mounting the brackets, running the cables, wiring the control box, and programming the limit switches. The first time you do it, the programming will take the most time. If you have installed a gate opener before, subtract about two hours.

What do you actually need to buy alongside it?

You need a 24V 12Ah battery for backup power — a standard automotive or marine battery works. If you want solar charging, buy a 30W solar panel separately. You may also need additional 5-conductor cable if your gate posts are more than 25 ft apart. The TOPENS XD852 review and rating unit is a solid starting point, but factor in those extras when budgeting.

Has it had any reliability issues over time?

In six weeks of daily use, I have not experienced any motor failures, control board glitches, or app disconnections. The left arm bracket developed slight play that I fixed with thread-locking compound. I have seen forum reports of limit switch drift after several months, but I have not encountered that myself. Long-term reliability looks promising but unproven beyond six months.

Where should I buy it to avoid fakes or poor service?

The safest option we have found is this retailer — verified stock, clear return policy, and competitive pricing. Avoid third-party sellers on other marketplaces that offer prices significantly below 699USD, as counterfeit control boards and underpowered motors have been reported.

Can this opener work with gates that open inward?

Yes, the XD852 supports both pull-to-open and push-to-open configurations. The arms can be mounted to push the gate outward or pull it inward. Just make sure your hinges allow enough clearance for the arm travel. The manual includes diagrams for both setups, though the push-to-open configuration requires additional clearance that may not exist on all gate posts.

How loud is the motor during operation?

It is quiet enough that you can hold a conversation standing next to it. The motor hum is about the same volume as a dishwasher running. The alarm beep before operation is more noticeable but still not disruptive. I measured approximately 55 dB at 3 ft from the motor, which is lower than most garage door openers.

My Actual Take, After All of It

What Tipped It For Me

The deciding factor was the app reliability. I have used smart home products that disconnect constantly or have clunky interfaces, and I expected the TOPENS app to be the weak link. It was not. Every time I pulled out my phone to open the gate for a delivery or a guest, it worked on the first try. That consistency, combined with the motor power that handles my heavy gates without complaint, made the purchase feel justified despite the setup headaches.

The Honest Verdict

I recommend the TOPENS XD852 to anyone with heavy dual swing gates who wants app control and is willing to invest a weekend in installation. It is not the cheapest option, but it delivers on its promises where it counts — motor strength, connectivity, and daily reliability. I would buy it again for my property without hesitation. My TOPENS XD852 review verdict is that this is a solid, well-engineered product for the right buyer.

If You Have Used It, Tell Me What You Found

If you already own the TOPENS XD852, I would genuinely like to hear about your experience — especially if you have heavy gates near the 18 ft maximum or if you are using the solar option. Drop your thoughts in the comments below. And if you are ready to buy, check the current price for the TOPENS XD852 on Amazon to see if it makes sense for your setup.
